Differential Crystal Oscillator（DXO）
Crystal Oscillator
Crystal oscillators (SPXO/VCXO/DXO) are active devices that integrate crystal resonators and oscillation circuits. They can output CMOS or differential frequency signals, and are used to provide a reference clock source for circuits.
Key Features
· Ultra-small and ultra-thin
· Wide operating temperature range
· Low jitter
· High stability
· Full range of form factors
Application Fields
Automotive electronics, Smart terminals, Smart home appliances, Industrial control equipment, Communication equipment, Data communication products

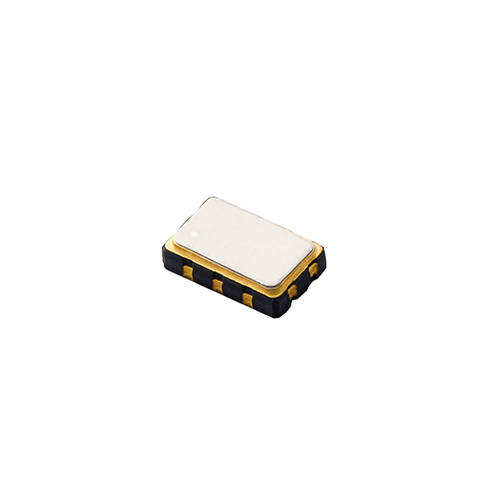

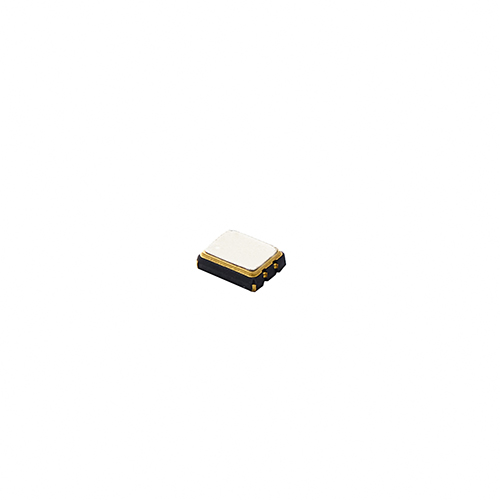

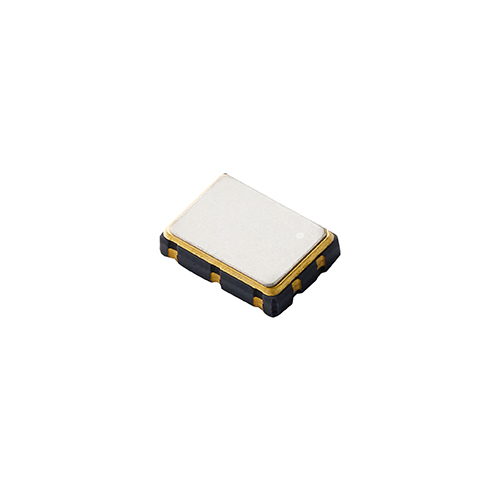

Differential Crystal Oscillator（DXO）
Model | Frequency Stability | Temperature Range | Waveform | Frequency Range | Jitter（12K~20MHz） |
PDC3225 PDC5032 PDC7050 | ±25ppm ±50ppm | -40～+85℃ | LVPECL LVDS | 10MHz～1500MHz | 0.8ps Typ& 156.25MHz |
PDC3225 PDC5032 PDC7050 | ±30ppm ±50ppm ±80ppm | -40～+85℃ -40 ~+105℃ -55～+125℃ | LVPECL LVDS HCSL | 25MHz~160MHz | 0.1ps Typ& 156.25MHz |
Model (Low Jitter) | Frequency Deviation | Temperature Range | Waveform | Frequency Range | Jitter（12K~20MHz） |
PDC2520 PDC3225 PDC5032 PDC7050 | ±30ppm ±50ppm ±80ppm | -40～+85℃ -40 ~+105℃ -55～+125℃ | LVPECL LVDS HCSL | 25MHz~160MHz | 0.045ps Typ& 156.25MHz |
PDC3225 | ±30ppm ±50ppm ±80ppm | -40～+85℃ -40 ~+105℃ -55～+125℃ | LVPECL LVDS | 75MHz~625MHz | 0.4ps Typ& 156.25MHz |
