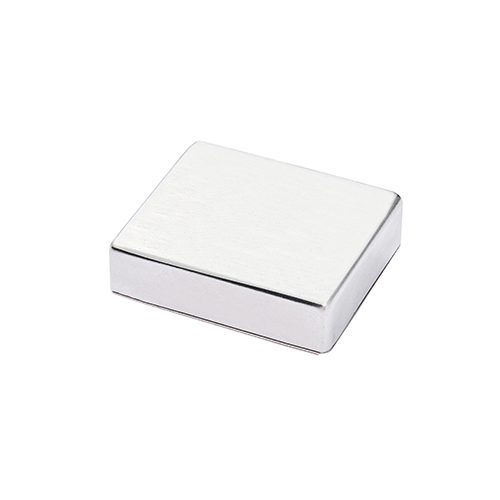

Chip-Scale Atomic Clock
Mod el |
Output Frequen cy | Factory Deviation | Frequency Stability | Frequency drift rate (1 day after power-on) |
Frequency-temperature characteristic | Frequency Accuracy (After locking the external 1PPS for two hours) |
Power-on lock time (Normal temperature) | Punctuality (Tamed for 24 hours) | power consumption | Voltage | Temperature Range | Dimensions |
QT45
| 10MHz 16.384MHz 20MHz 24.576MHz | ≤±5E-11 | ≤3E-10/s ≤1E-10/10s ≤3E-11/100s | ≤3E-11/24h | ≤1E-9 (-40～+70℃) | ≤±1E-12/24h | ≤4minutes | ≤5us/24h | Stable power consumption≤130mW Startup power consumption≤200mW | +3.2Vdc ～ +3.4Vdc | -10～+70℃ | 41x35x12 (mm) |
